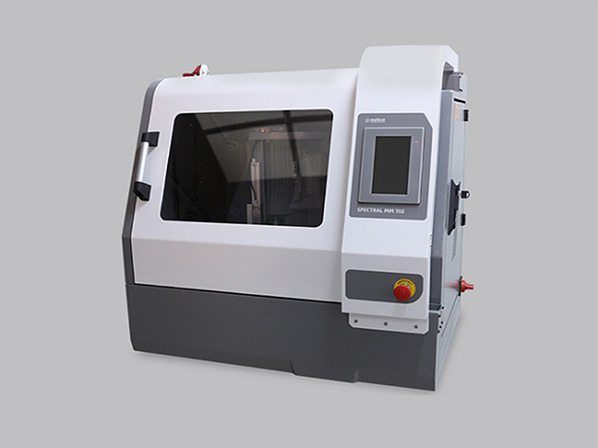

for preparation of non-ferrous metal samples for OES and XRF analysis, bench top compact design, Siemens PLC control unit, Programmable with colored 7'' HMI touch screen control, closed housing, max. safety provided with interlocking switch, large working space with LED lighting, chip container, extraordinary access for easy handling with sliding door, for samples up to 70 mm dia. automatic sample feeding with adjustable fine speed control, controlled material removal from the specimen with accuracy of 0.01 mm, cutting motor 3 kW, with electronic brake system and overload protection, with variable rotational motor speed 500-4000 rpm to obtain optimum surfaces for different materials, ready for operation. "Without milling head. Without clamping devices. Without cooling system. 400 V, 3-phase, 50 Hz. "

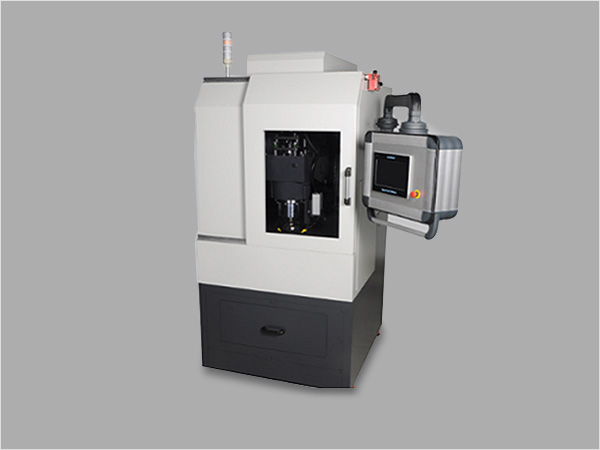

for preparation of steels, cast iron and non-ferrous metal samples for OES and XRF analysis, Programmable with colored 10'' HMI touch screen control, Siemens PLC control unit, closed housing, max. safety provided with interlocking switch, large working space with LED lighting, chip container, special clamping device suitable for all shapes of sample forms, (cylindrical, round, oval, etc.), for samples up to 60 mm dia., with max. 65 HRC, integrated air cooling system, automatic height positioning of the milling head for operation. automatic sample feeding with adjustable fine speed control, digital depth setting, digital setting of milling height with accuracy of 0.01 mm., milling motor 5.5 kW, digital setting of head rotational speed to obtain optimum surfaces for different materials, ready for operation. Without milling head

• - Automatic sample height measurement system is optionally available for fully cyclic automation.
• - The only thing is operator need to do is place sample on the clamping device and press start button.
• - Air cooling unit is strongly recommended so that the surface temperature of the sample is kept at an optimum

• - Special Clamping Device to hold a wide variety of sample sizes
• - Automatic Clamping and Sample height measurement
• - Automatic height calibration of the milling head.
• - Quick and Easy Exchange of Milling Head
• - Standard Air Cooling
• - Optional Deburring Device for round calibration samples with the special milling head
• - Inbuilt chip collection unit.
